• BMW Z4 35i 2009-13 [E89]

ModBargains is proud to introduce the new Z4 Competition Series Front Mount Intercooler (FMIC) Kit for BMW Z4 35i [E89] produced by Evolution Racewerks. The Competition Series Intercooler is ideal for improved cooling, and noticeable gains in power upon installation.  The Evolution Racewerks Competition Series Intercooler has been in development for over a year on and off the track, and has had 6 design revisions to improve cooling efficiency and flow characteristics. Dyno tests have proven the intercooler to show gains of 15 - 25 horsepower at the wheels, and even more on high boost applications.

Available Intercooler Kits

Basic - The Basic Kit consists of the intercooler assembly, upper intercooler piping, silicone hump hoses and t-bolt clamps. Everything you need to install the FMIC on your car and is what is typically included in most FMIC kits out in the market.

Standard - The standard kit consists of everything included in the basic kit but adds the diverter valve pipe upgrade.  The diverter valve pipe upgrade allows easy upgrades of the Diverter Valve.  Changing the factory diverter valves to aftermarket units will help increase throttle response as aftermarket units tend to react faster and can hold higher boost pressures.

Evolution Racewerks Competition Series Basic Kit	Evolution Racewerks Competition Series Standard Kit

Features
The heart of the Evolution Racewerks Competition Intercooler is the massive 20”x5.5""x6” (26.5”x5.5""x3” with end tanks) high density bar and plate intercooler core. It features 660 cubic inches of very efficient high density bar & plate core, versus the factory 425 cubic inches.  Through extensive testing of different types of intercooler cores Evolution Racewerks found that the high density bar and plate core to be the most efficient. Independent testing has shown that the Evolution Racewerks Intercooler is so efficient in cooling that it has cooled intake air temperatures to almost ambient (outside) temperatures. Evolution Racewerks also did extensive testing on the proper size to use to effectively cool the hot charged air as well as fight off “heatsoaking”. “Heatsoaking” is not an issue at all as shown by consistency of the Intake air temperatures staying in the same temperature range throughout the WHOLE RPM powerband. Evolution Racewerks' Competition Intercooler is just what it is, designed for competition. Evolution Racewerks has tested their intercooler in 100+ degree heat, on their time attack race car and have had no problems with heatsoaking. With it's size and ability to support over 600hp, it is most likely the last intercooler you will ever buy.

Available Finishes

Polished	Type III Hard Anodize Black Finish

Design
One of the most overlooked aspect of intercooler design is the intercooler end tank and piping.  Having shorter and less bends on the intercooler piping will promote better internal flow.  This helps in reducing turbo lag, increase throttle response and faster boost spool ups.  An intercooler end tank must be designed to channel and distribute air coming in from the inlet efficiently throughout the intercooler core.

Evolution Racewerks' end tanks design has been revised numerous times to promote smooth internal air flow. The cast end tanks allow a smooth radius on the inner edges of the end tank, causing less turbulence. The inlet pipe angle has been changed to provide a smooth entry into the end tank and removes an extra bend that the factory hoses have.  Rubber hosing expands under boost pressure.  This expansion disrupts internal flow and causes turbulence, all of which slow down airflow velocity (which causes slower boost spool up and decreased throttle response).  By replacing the factory rubber hoses with hard piping, noticeable increases in boost spool up and faster throttle response can be seen.

Highlights Large 20""x5.5""x6"" intercooler core Cast end tanks for improved durability and flow Includes all aluminum intercooler piping, which replaces all OEM rubber hoses with hard piping for improved throttle response and faster turbo spool up Piping features beaded ends, silicone ""hump"" hoses, and T-bolt clamps Maintains all factory components All hardware needed to install is included Limited lifetime warranty

Do you have any questions about this Intercooler? Give our Mod Experts a call at (714) 582-3330

Placement
Evolution Racewerks' Competition Intercooler sits in the factory location underneath the radiator.  Why you ask?  The radiator fan and radiator shrouding extends from the radiator above towards the bottom, directly behind the factory intercooler.  By siting the intercooler in the same location, we can take advantage of the radiator fan pulling air through the intercooler core.

This makes for even greater efficiency, just like how the BMW engineers designed it to do.  With the optional carbon fiber shroud ducting, even greater efficiency can be had.  The carbon fiber shrouding channels airflow from the center grill to the intercooler core. Air wants to travel through the path of least resistance, which in this case is around the intercooler core instead of through it.  The carbon fiber shrouding prevents this and forces air to travel through the core. Even with a small fan on the dyno, intake air temperatures are still very low.  Also, by maintaining the factory configuration, we do not block airflow to the radiator at all.

Performance
Unlike turbo kits and other parts where the main power adder is constant, intercooler gains is based largely on how badly the current intercooler setup working and will vary from setup to setup. Dyno graphs do not properly show the performance of intercoolers, intake air temperatures do as that is the job of the intercooler.  A car running factory boost pressures and The Evolution Racewerks' Intercooler will see lower gains than another car running more boost with the same intercooler.  Even running upgraded downpipes and exhaust will affect overall gain. You will see a 15 to 25 hp to the wheels gain based on your modifications. On high boost cars, we have seen 25+ hp gains.

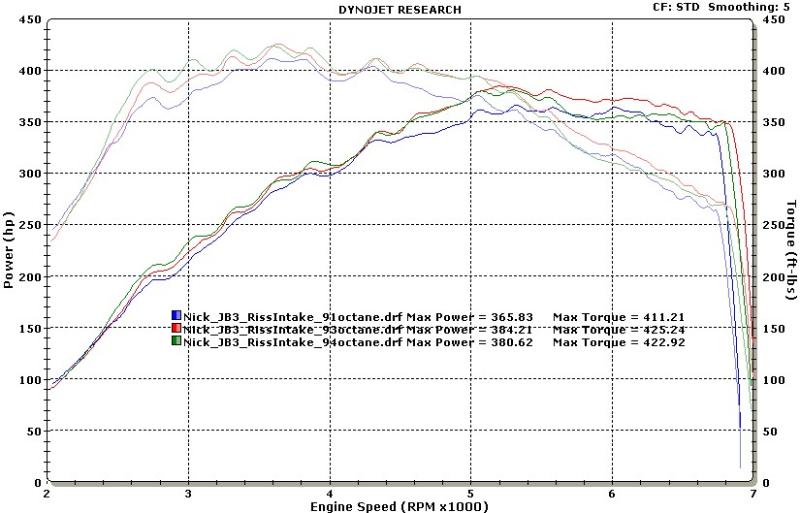

The above dyno is on a 135i and made 438whp, and 450 ft./lbs. Evolution Racewerks Intercooler, Catless downpipes, Exhaust, Intake, and Juice Box 3 on 100 octane.
