- Ideal for 502 cid and Smaller Competition Engines

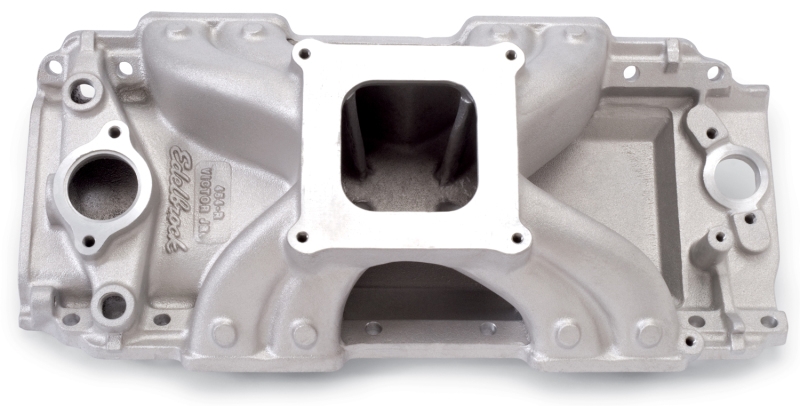

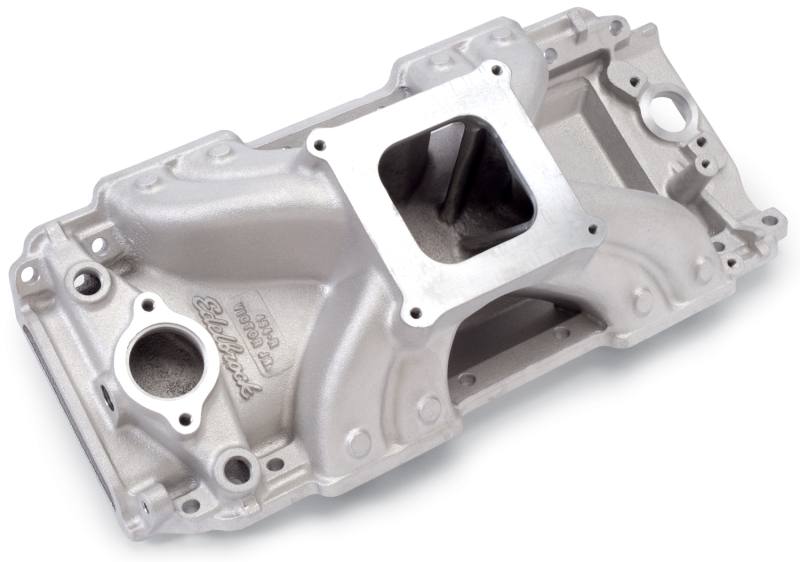

The Edelbrock Victor Jr. 454-R intake manifold is specifically engineered for high-performance competition applications on Chevrolet big-block V8 engines ranging from 396 to 502 cubic inches. Designed with rectangular-port heads in mind, this manifold enhances airflow characteristics to maximize power output and improve acceleration. Its polished finish provides a brilliant shine and a classic appearance, making it suitable for race vehicles and show cars alike. The manifold features extended runner dividers, a smaller plenum chamber, and a unique runner design that collectively contribute to better 60-foot times and optimal power delivery from 3,500 to 7,500 rpm. These design elements ensure efficient fuel and air mixture flow, resulting in increased horsepower and torque at high RPMs, which are crucial for competitive racing performance.
Features:
- Designed for Chevrolet 396-502 big-block V8 engines with rectangular-port heads
- Optimized for use with an 850 cfm standard flange carburetor
- Extended runner dividers improve flow and power output
- Smaller plenum chamber enhances throttle response and high RPM performance
- Unique runner design for improved 60-foot times and maximum power from 3,500 to 7,500 rpm
- Polished finish provides a shiny, professional appearance
- Compatible with Edelbrock Victor race heads #77609 and Victor 24-degree heads #77409, #77459, #77429, #77479, and #77485
- Ideal for 502 c.i.d. and smaller competition engines
- air_freight_prohibited:
- false
- not_carb_approved:
- true
- carb_acknowledgement_required:
- true
- ltl_freight_required:
- false
- prop_65:
- Y
- part_type:
- automotive
- epa:
- N/A
- regular_stock:
- false
- units_per_sku:
- 1
