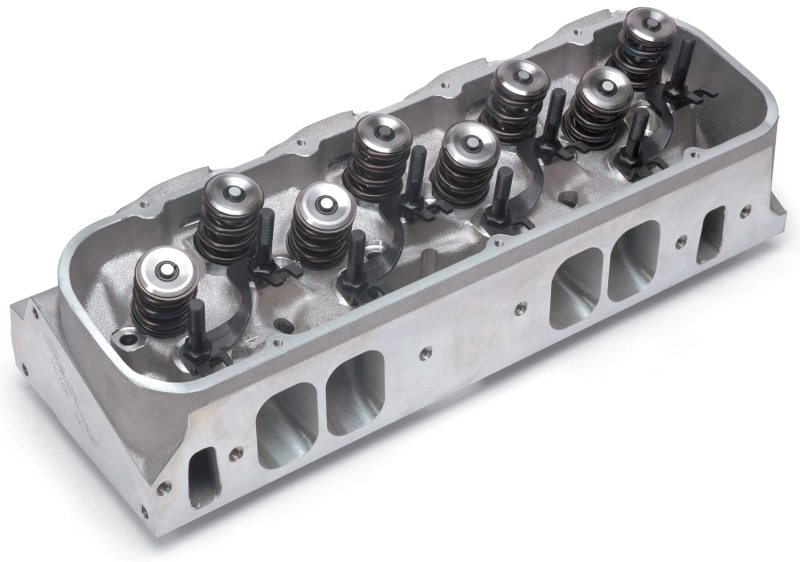

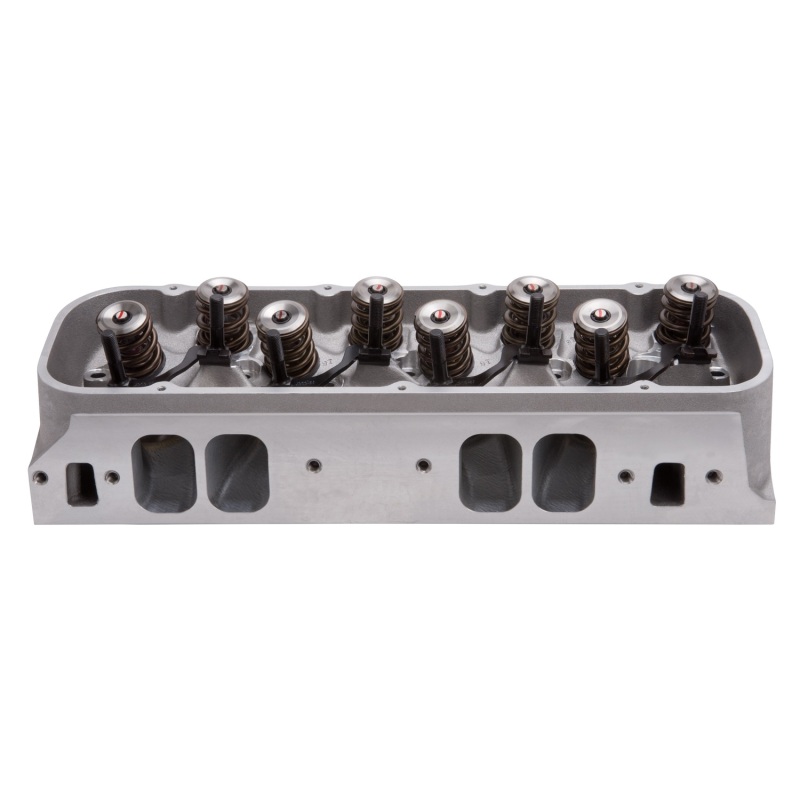

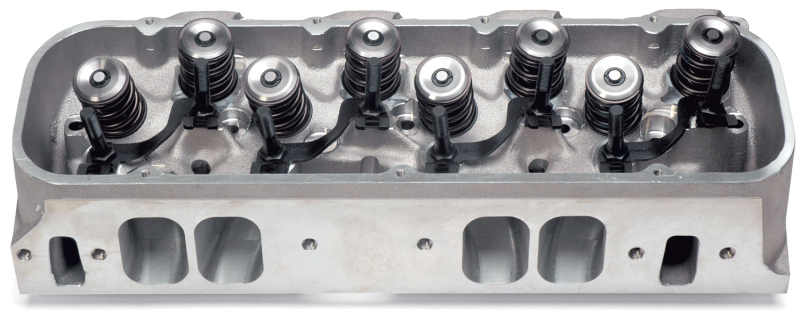

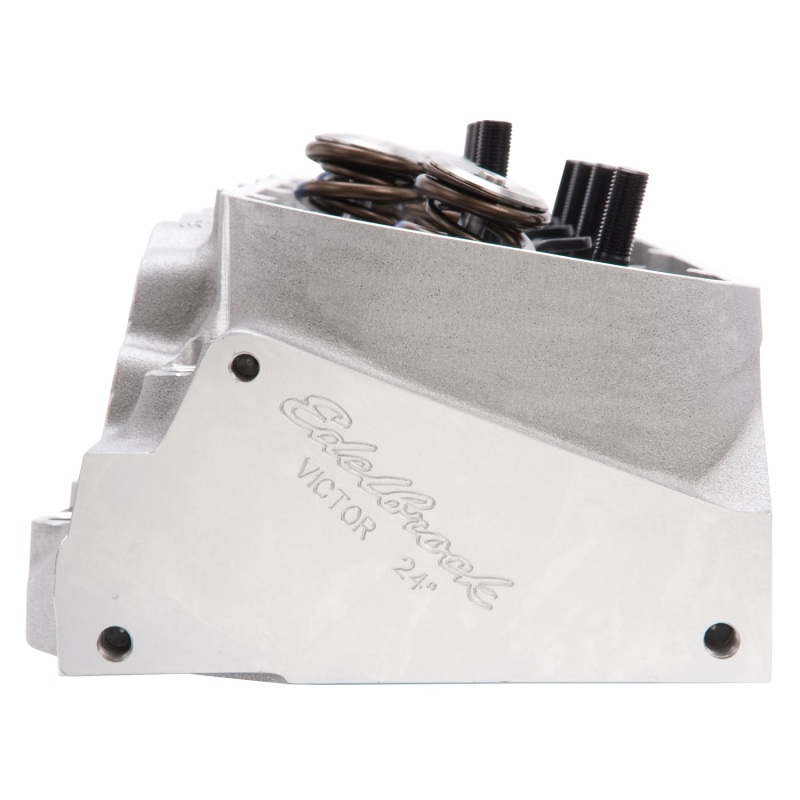

Edelbrock Race Cylinder Head Musi CNC BBC Victor 24-Degree Complete — High-Performance Big Block Chevy Head with Large Oval Ports

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock. Edelbrock part #61409 Victor 24 Degree CNC rectangular port cylinder heads are designed for use with large cubic inch and/or high air demand Big Block Chevy engines with a minimum 4.47" diameter bore. Chevrolet:Big-Block Race

• 118cc Chamber; 367cc-377cc Intake Port

The Edelbrock #61409 Victor 24-Degree CNC rectangular port cylinder head, developed in collaboration with Pat Musi Performance, offers exceptional performance for high-horsepower Big Block Chevy engines. Crafted with a thick deck and reinforced spring pockets, this heavy-duty casting is designed to withstand high-lift cams and aggressive spring pressures, making it ideal for race applications. Equipped with Manley dual-spring valve springs and titanium retainers capable of handling up to .880 inches of lift, this cylinder head ensures durability and performance under demanding conditions. The large oval intake ports, with flow capacities of 367cc to 377cc, are engineered to deliver impressive airflow right out of the box, optimizing power output and efficiency. The exhaust port exits are raised by three-quarters of an inch to significantly improve exhaust flow, leading to increased horsepower and torque. These heads are compatible with large cubic inch engines that have a minimum bore diameter of 4.47 inches, making them suitable for high-performance applications that require maximum airflow and durability. Off-the-shelf large oval-port intake manifolds designed for these heads are readily available through Edelbrock, simplifying installation and setup. Designed for race use, these heads are not carb-approved and require acknowledgment of their intended application. With a 118cc combustion chamber, these Edelbrock Victor heads are engineered to deliver optimal compression ratios for serious racing performance. Whether upgrading an existing engine or building a new high-performance powerplant, the Edelbrock Race Cyl Head Musi CNC BBC Victor 24-Degree Complete provides the strength, flow, and reliability needed for competitive racing.

Features:

• Heavy-duty casting with extra thick deck and reinforced spring pockets for high-lift cams and heavy springs

• Manley dual-spring valve springs with titanium retainers supporting up to .880" lift

• Large oval intake ports with flow capacities of 367cc to 377cc for enhanced airflow

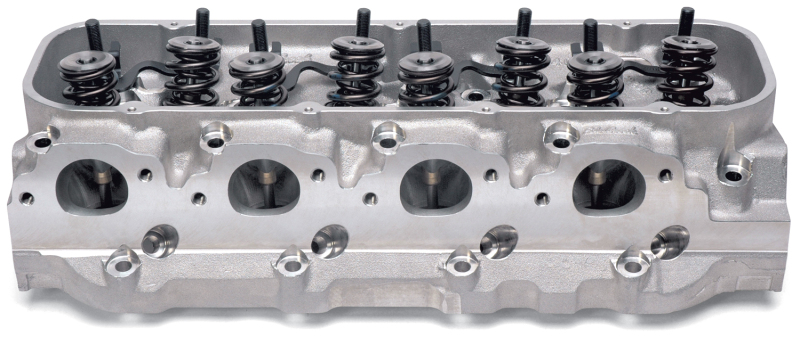

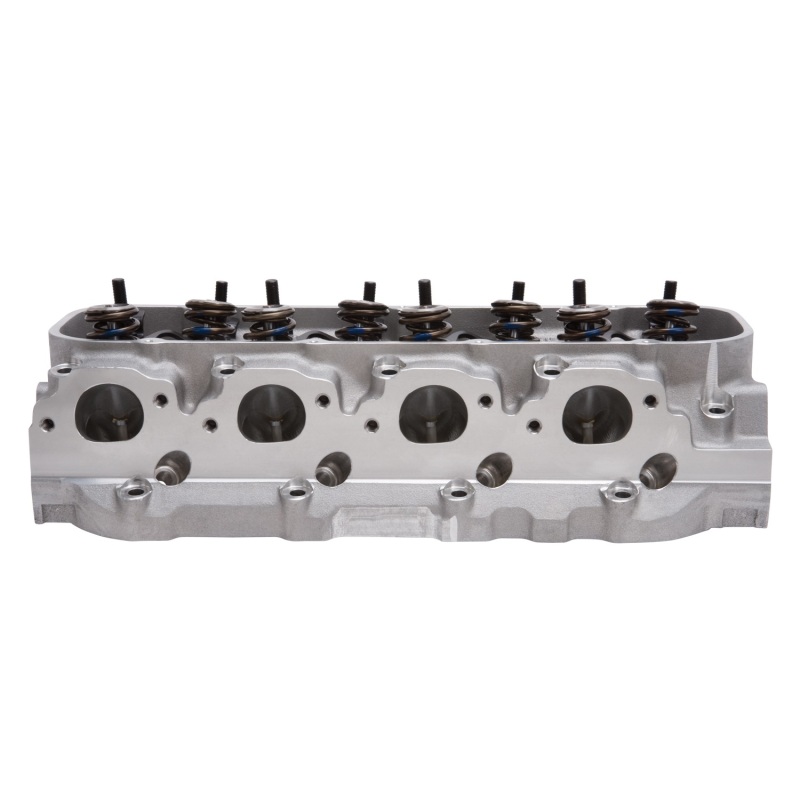

• Raised exhaust port exits by 0.75 inches to improve exhaust flow and power

• Designed for large cubic inch Big Block Chevy engines with a minimum 4.47-inch bore

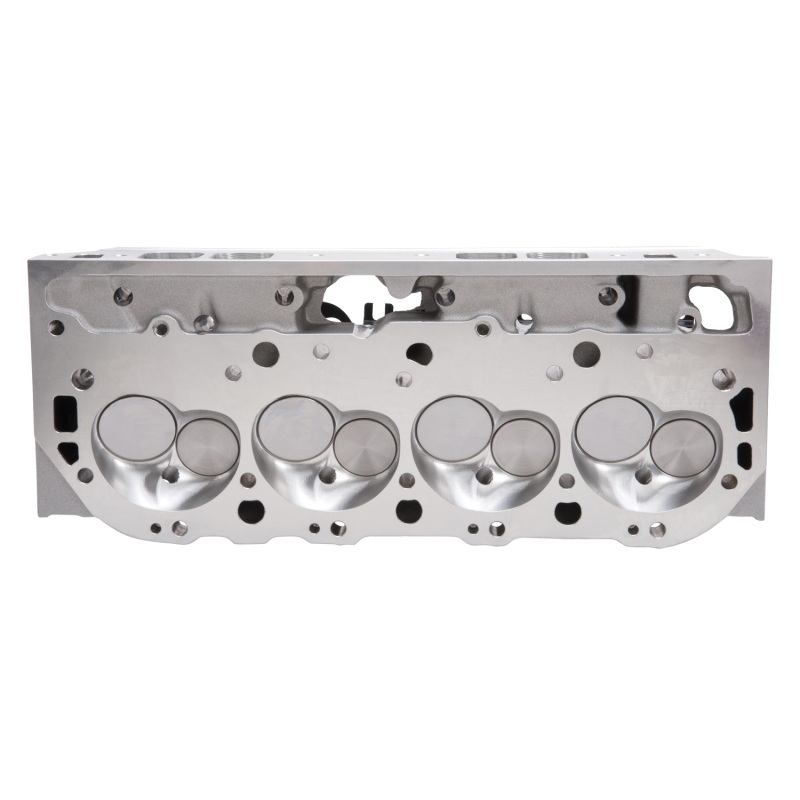

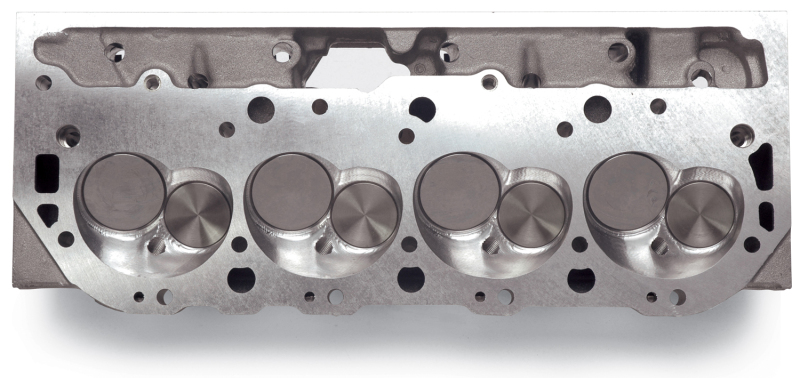

• 118cc combustion chamber optimized for high-performance racing applications

• Complete assembly ready for installation, compatible with Edelbrock large oval-port intake manifolds
