- Works w/GT28/GT30/GT35 Turbine Housing
- 1 Year Limited Warranty
- Stainless Steel

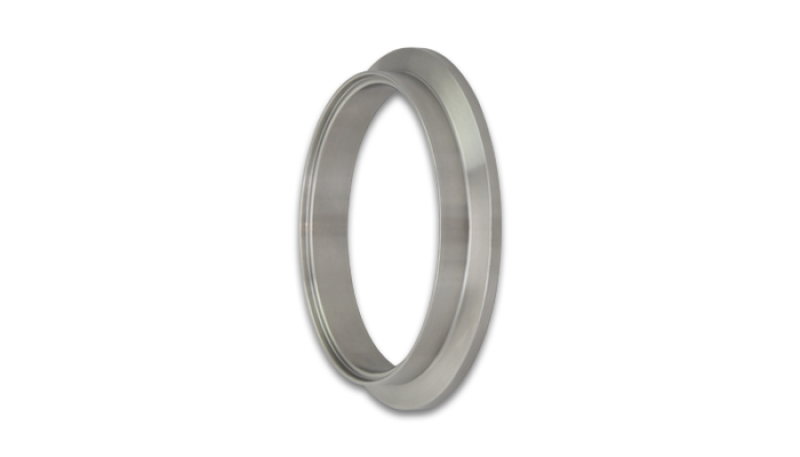

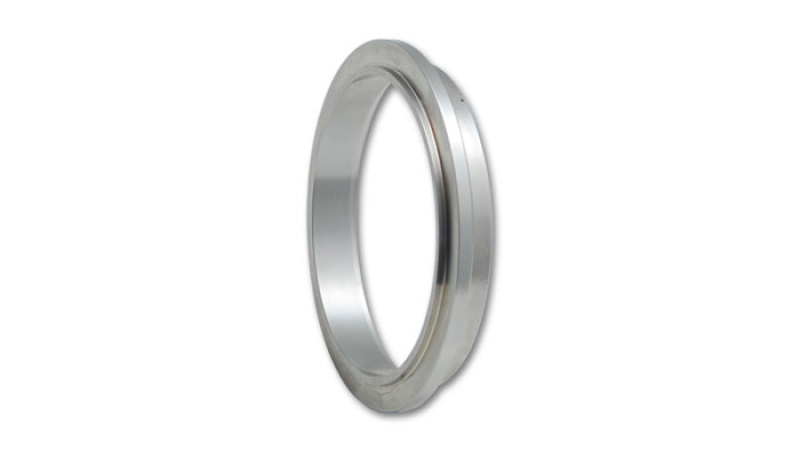

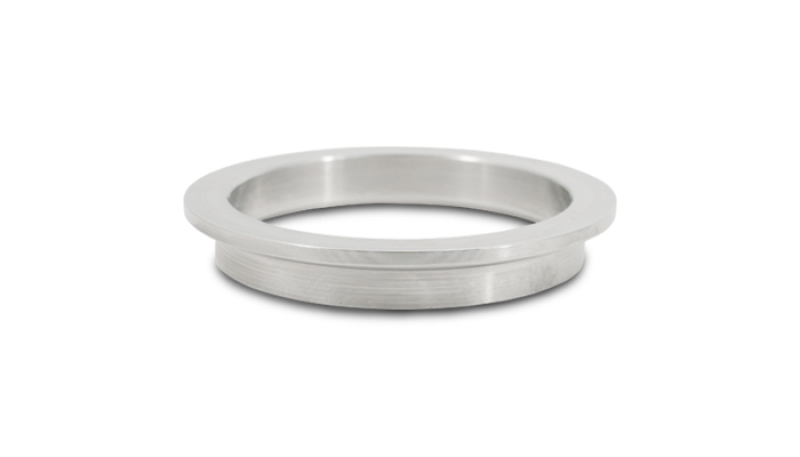

The Vibrant Performance T304 stainless steel turbo V-Band outlet flange is engineered for high-performance applications and designed specifically for Garrett GT3788R, GT4088R, and GT4094R turbochargers. Crafted entirely from durable T304 stainless steel, this flange offers excellent corrosion resistance and strength, making it ideal for demanding automotive environments. Its precise construction ensures a secure and leak-free connection between the turbocharger and 3-inch outer diameter tubing, facilitating optimal exhaust flow and turbo efficiency. The flange features a 3.4 mm apex width, a 13.3 mm thickness, and a 91.95 mm flange outer diameter, with a 3 mm tube recess ID and a 1.5 mm tube recess depth, providing a perfect fit for compatible turbo systems. The port ID measures 73.8 mm, ensuring compatibility with various turbo configurations. Designed without a registration ring, this flange simplifies installation and maintenance. It supports turbo inlet, external wastegate, and discharge applications, with standard 4-bolt, V-band, divided, transition, complex multi-bolt, and block-off options available. Notably, this flange works seamlessly with GT28, GT30, and GT35 turbine housings, broadening its versatility. Backed by a one-year limited warranty, the Vibrant T304SS Turbo V-Band Outlet Flange offers reliable performance and durability for your turbocharged build. It is suitable for automotive use and complies with Prop 65 standards, ensuring safety and quality. This flange is an essential component for enthusiasts and professionals seeking a robust, high-quality connection point in their turbo systems.
Features:
- Constructed from T304 stainless steel for corrosion resistance and strength
- Designed for Garrett GT3788R, GT4088R, and GT4094R turbochargers
- Supports turbo inlet, external wastegate, and discharge applications
- Compatible with standard 4-bolt, V-band, divided, transition, multi-bolt, and block-off configurations
- Precise dimensions for optimal fit with 3-inch OD tubing
- Supports a wide range of turbo housings including GT28, GT30, and GT35
- No registration ring simplifies installation and maintenance
- Backed by a 1-year limited warranty
- Prop 65 compliant for safety and quality assurance
- air_freight_prohibited:
- false
- not_carb_approved:
- false
- ltl_freight_required:
- false
- prop_65:
- Y
- part_type:
- automotive
- epa:
- N/A
- carb_acknowledgement_required:
- false
- regular_stock:
- t
- units_per_sku:
- 1
