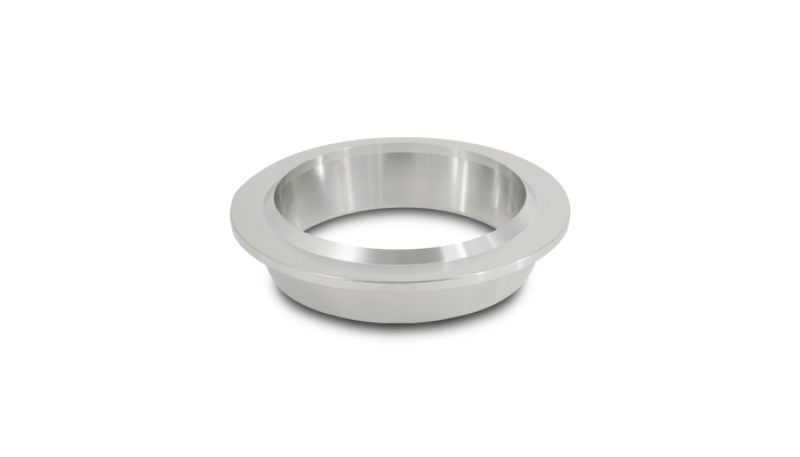

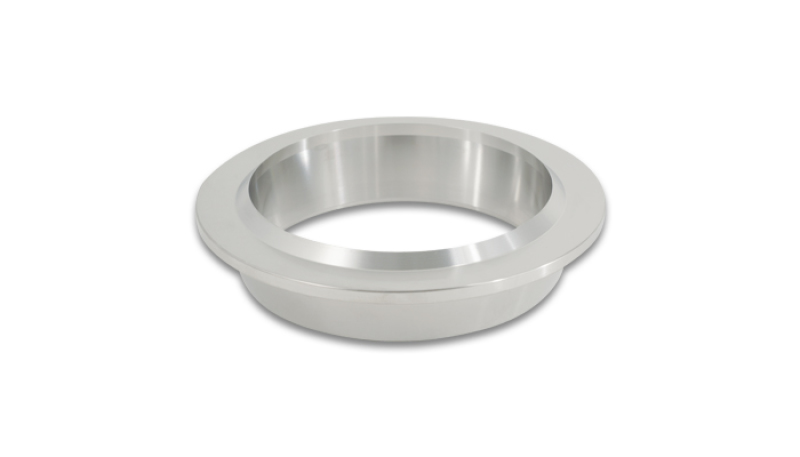

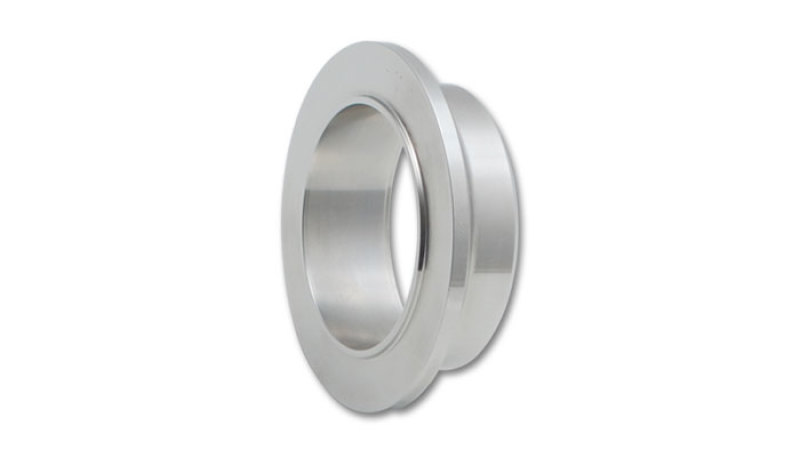

Vibrant T304 Stainless Steel Turbo V-Band Inlet Flange for Garrett GTX47/GTX50/GTX55 Gen2

Vibrant Performance offers a variety of turbo inlet flanges for your custom fabrication projects. Constructed from 304 stainless steel, mild steel, and aluminum, Vibrant flanges are precision laser-cut or CNC-machined to ensure a perfect fit to your turbo components. For Garrett GTX47 Gen2, GTX50 Gen2, GTX55 Gen2 and Tial Turbine Inlet for Garrett GTX55. Turbo Inlet Flange; 107.95MM Flange O.D.; 3.4MM Apex W; 87MM CRMD; 3.5MM CRMDH; 73.5MM Port ID; 23.8MM Thickness; 3 in. Tube Recess ID; 2MM T. Recess Depth; 304 Stainless Steel;

• Works w/GT28/GT30/GT35 Turbine Housing
• 1 Year Limited Warranty
• Stainless Steel

The Vibrant T304 stainless steel turbo inlet flange is designed for high-performance custom fabrication projects. Crafted from durable, corrosion-resistant 304 stainless steel, this flange offers a precise fit for turbochargers such as Garrett GTX47 Gen2, GTX50 Gen2, GTX55 Gen2, and Tial turbine inlets compatible with Garrett GTX55 models. Its laser-cut and CNC-machined construction ensures consistent quality and a perfect seal, making it an essential component for builders seeking reliability and efficiency in their turbo systems. The flange features a 107.95mm outer diameter, a 3.8mm apex width, and an 87mm center bore, providing a robust interface for your turbo assembly. With a flange thickness of 23.8mm and a 3-inch tube recess ID, it is designed to accommodate standard turbo and piping sizes, simplifying installation and integration into your custom setup. The flange's port ID measures 73.5mm, ensuring compatibility with various turbine housings, and the recess depth of 2mm allows for secure sealing and welding. Its universal design works well with popular turbine housings like GT28, GT30, and GT35, making it versatile for different projects. The flange's high-quality stainless steel construction not only provides excellent strength but also resists rust and corrosion, ensuring long-term durability under demanding conditions. This product is backed by a one-year limited warranty, reflecting Vibrant's commitment to quality and customer satisfaction. Whether you're upgrading your turbo system or building a custom setup, this flange offers a reliable, precision-engineered solution for seamless turbo connection and optimal performance.

Features:

• Constructed from high-grade 304 stainless steel for durability and corrosion resistance

• Precision laser-cut and CNC-machined for a perfect fit

• Compatible with Garrett GTX47/GTX50/GTX55 Gen2 turbos and Tial turbine inlets for Garrett GTX55

• Outer flange diameter: 107.95mm with a 23.8mm thickness

• Designed for easy integration with GT28, GT30, GT35 turbine housings and standard piping
