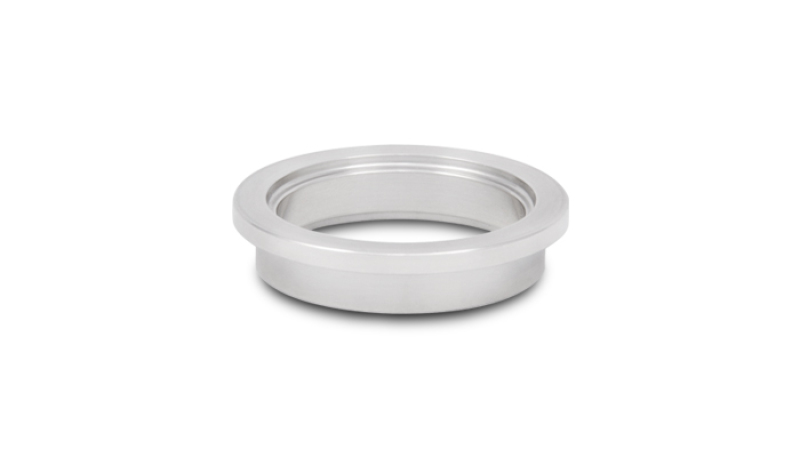

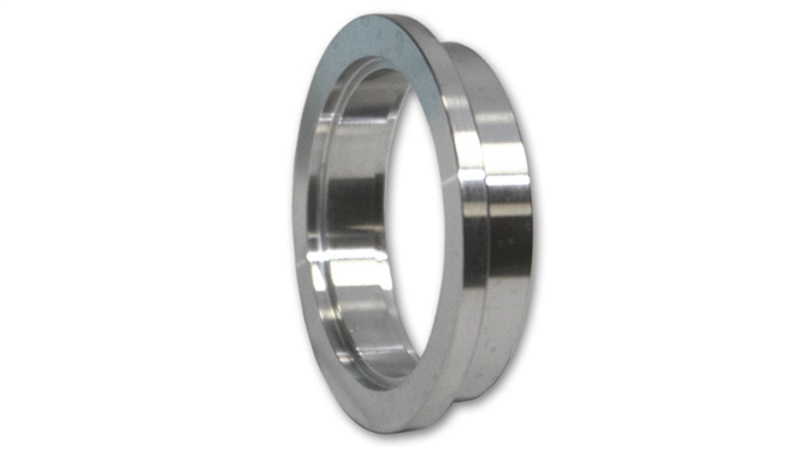

Vibrant External Wastegate Inlet Flange V-Band Style for Tial 44mm and MV-R Turbo - T304 Stainless Steel

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available. Wastegate Inlet Flange; 1.875 in. TRID; 63.4mm Flange OD; 3.7mm Apex Width; 304 Stainless Steel; 50.8mm CRFD; 1.5mm CRFDD; 13.3mm Thickness; 40mm Port ID; 2mm Tube Recess Depth; Precision laser cut and CNC machined to ensure a perfect fit to your turbo components

• Designed For 44mm Wastegates
• 1 Year Limited Warranty
• Stainless Steel

The Vibrant Performance External Wastegate Inlet Flange is crafted from durable 304 stainless steel, designed specifically for turbo fabricators seeking high-quality, reliable components. This flange is compatible with industry-leading turbochargers, including Tial 44mm and MV-R models, making it an ideal choice for custom turbo setups. Its V-Band style ensures a secure and easy connection, providing a sealed, leak-free interface between your wastegate and turbo system. The flange features a 1.875-inch TRID diameter with a 63.4mm flange outer diameter, complemented by a 40mm port ID for optimal exhaust flow.

This flange is precision laser cut and CNC machined to guarantee a perfect fit with your turbo components, ensuring seamless assembly and consistent performance. The 1.5mm apex width and 13.3mm thickness provide robustness and durability under high-pressure conditions. Designed to accommodate 44mm wastegates, this flange offers a reliable connection for high-performance applications. Its construction from stainless steel ensures resistance to corrosion and heat, making it suitable for demanding racing and street environments.

Vibrant's flange is engineered to deliver easy installation and long-lasting performance, backed by a 1-year limited warranty. Whether you're upgrading an existing setup or building a custom turbo system, this flange provides the precision fit and durability needed for optimal turbocharger operation. Its compatibility with various flange types, including standard 4-bolt and divided configurations, makes it versatile for different exhaust and wastegate arrangements. Trust Vibrant’s quality manufacturing to enhance your turbocharging project with a component designed to withstand rigorous use and deliver consistent, high-performance results.

Features:

• Constructed from 304 stainless steel for durability and corrosion resistance

• Designed for 44mm wastegates with a 1.875-inch TRID and 40mm port ID

• V-Band style flange for a secure, leak-free connection

• Precision laser cut and CNC machined for perfect fitment

• Suitable for turbo inlet, external wastegate, and discharge applications

• Robust 1.5mm apex width and 13.3mm thickness for high-pressure environments

• Compatible with various flange types including standard 4-bolt and divided configurations

• Backed by a 1-year limited warranty for confidence in performance
