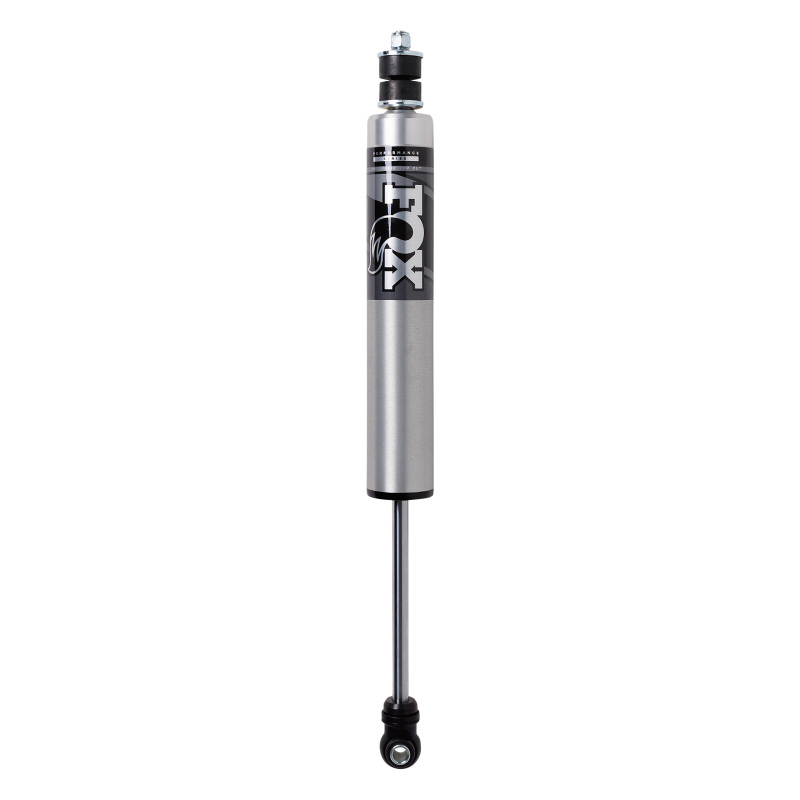

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Application specific valving to maximize performance.
Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D__x000D_
_x000D__x000D_
Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D_
_x000D__x000D_
Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
- 2.5 in. Impact Extruded 6061-T6 Aluminum Shock Body
- 2.5” Impact extruded 6061-T6 aluminum shock body
- High-flow velocity-sensitive damping
- Type II clear-anodized body plating
- Fully rebuildable and re-tunable
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Hydraulic Top Out [HTO] Piston
- Application specific tune
- 5/8 in. Hard Chrome Shaft
- 5/8” hard chrome shaft
- Corrosion resistant
