Must use ACT (included in kit) or LS Flat Flywheel
HD/Race Sprung 6 Pad
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

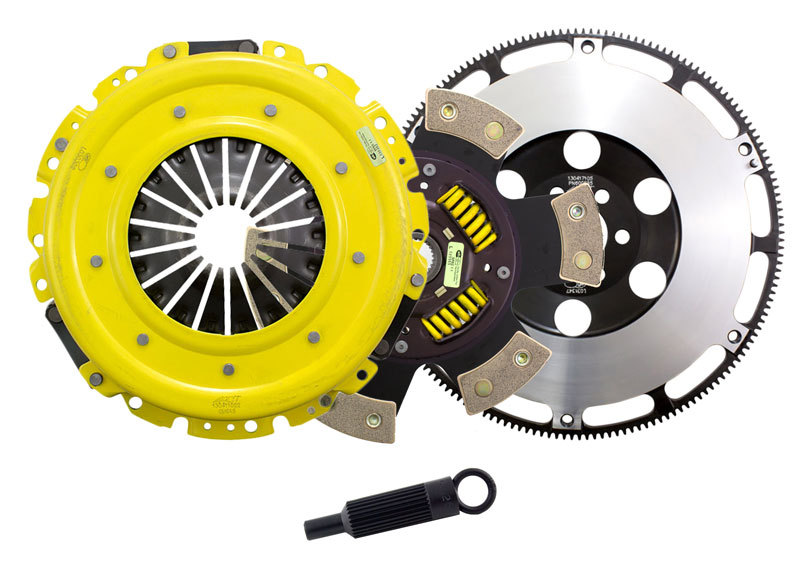

GM12-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Fitment:
2006 Chevrolet Corvette Z06
2007 Chevrolet Corvette Z06
2008 Chevrolet Corvette 427 Limited Edition Z06
2008 Chevrolet Corvette Z06
2009 Chevrolet Corvette Z06
2010 Chevrolet Camaro SS
2010 Chevrolet Corvette Z06
2011 Chevrolet Camaro SS
2011 Chevrolet Corvette Z06
2011 Chevrolet Corvette Z06 Carbon
2012 Chevrolet Camaro SS
2012 Chevrolet Corvette Z06
2013 Chevrolet Camaro SS
2013 Chevrolet Corvette 427
2013 Chevrolet Corvette Z06
2014 Chevrolet Camaro SS
2014 Chevrolet Camaro Z/28
2015 Chevrolet Camaro SS
2015 Chevrolet Camaro Z/28
