Must use ACT Flywheel (Included in kit)
HD/Race Sprung 4 Pad
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

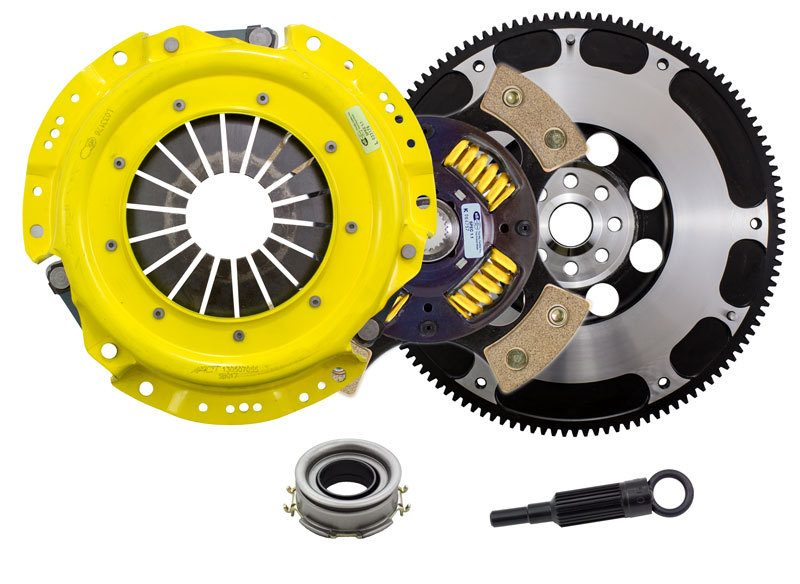

SB7-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Fitment:
2013 Scion FR-S Base
2013 Subaru BRZ Limited
2013 Subaru BRZ Premium
2014 Scion FR-S Base
2014 Subaru BRZ Limited
2014 Subaru BRZ Premium
2015 Scion FR-S Base
2015 Subaru BRZ Limited
2015 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2016 Scion FR-S Base
2016 Subaru BRZ Limited
2016 Subaru BRZ Premium
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Limited
2017 Subaru BRZ Premium
2017 Toyota 86 Base
2017 Toyota 86 Special Edition
2018 Subaru BRZ Limited
2018 Subaru BRZ Premium
2018 Subaru BRZ TS
2018 Toyota 86 Base
2018 Toyota 86 GT
2019 Subaru BRZ Limited
2019 Subaru BRZ Premium
2019 Toyota 86 Base
2019 Toyota 86 GT
2019 Toyota 86 TRD Special Edition
2020 Subaru BRZ Limited
2020 Subaru BRZ TS
2020 Toyota 86 Base
2020 Toyota 86 GT
