PRESSED ASH GRAY
PRESSED BLACK CLEAR
Benefits:
- Stand out from the crowd with a set of genuine G27 Progressive wheels.
- Reduced rotating mass gives you the racer's edge.
- Turn heads with this timeless 10 spoke design.
- Get instant respect by running one of the best and most renowned wheel brands in the WORLD.
- Create jealousy among G27 owners.
Features:
- Deeper Pocket behind the 10 spoke design for bigger brake clearance.
- Monoblock Forged Construction (1 piece).
- Diamond cut for a sharper appearance and a more concave design is available without a center package option.
- 2 color options.
Appplication:
- E36 M3 1992-1999
- E46 M3 2000-2006
- E92 M3 2007-2013
- E87/E82 2004-Present
- F30 2011-Present
- F80 M3 2014-Present
- F82 M4 2014-Present
Face Design Options
G27 Progressive BMW Wheel Sizes
Size
Offset
Bolt Pattern
Face*
Center*
G27 Progressive BMW Fitment Guide
Vehicle / Model
Front Size
Rear Size
Tire Size (F)
Tire Size (R)
E46 M3
18x9.0 +35 (Face-2)
18x9.0 +35 (Face-2)
235/40R18
235/40R18
E46 Non-M 3 Series
18x8.5 +36 (Face-2)
18x9.5 +35 (Face-2)
225/40R18
255/35R18
E82 1-Series
18x9.0 +50 (Face-2)
18x9.0 +50 (Face-2)
225/40R18
255/35R18
E82 1M
18x9.0 +50 (Face-2)
18x9.0 +50 (Face-2)
225/40R18
255/35R18
E90 3-Series LCI
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/40R18
255/35R18
E9X 3-series
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/40R18
255/35R18
F22 2-Series
19x8.5 +36 (Face-2)
19x9.5 +45 (Face-1)
225/35R19
255/30R19
F30 3-Series
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/45R18
255/40R18
F32 4-Series
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/45R18
255/40R18
F80 M3*
20x9.5 +25 (Face-1)
20x10.5 +30 (Face-2)
255/30R20
285/30R20
F82 M4*
20x9.5 +25 (Face-1)
20x10.5 +30 (Face-2)
255/30R20
285/30R20
E85 Z4
19x8.5 +36 (Face-2)
19x9.5 +36 (Face-2)
235/35R19
265/30R19
E85 Z4M
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/45R18
255/40R18
E89 Z4
18x8.5 +36 (Face-2)
18x9.0 +35 (Face-2)
225/45R18
255/35R18

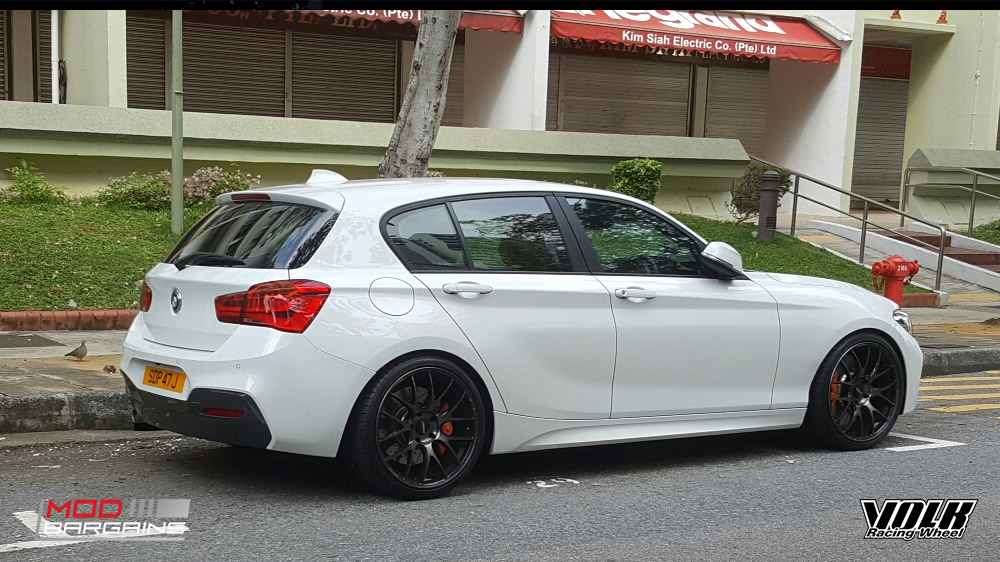

Vehicle Gallery
RAYS Engineering (Volk Racing Forging Technology):
Step #1 (Hot Forging):
The essence of RAYS forging technology begins with the use of RAYS 10,000-ton forging machine.This machine presses the actual spoke design into the billet. This results in a much stronger spoke than other forged wheels.
Step #2 (RM Forging):
The RAYS RM800 machine helps increase production efficiency by combining the Finish Forging process with Rim Spinning.
Step #3 (Heat Treatment):
Solution treatment then contributes to the forging process as alloy is rapidly heated and using special thermal treatment equipment. The alloy is then quickly cooled down and set to form a stronger structure.
- A Hardness Test machine is used in order to evaluate if the heat treatments have ratified the wheel to extremely high standards.
Step #4 (Machine Work):
An NC cutting device with an accuracy of one hundredth of a millimeter is used throughout the machining process in order to improve accuracy of the roundness of the wheel. After bolt pattern machine process is completed all the flashes are carefully removed.
Step #5 (Shot Blasting):
The wheel then goes through a shot blasting process which improves surface smoothness before powder coating of the wheel and surface finishing.
Step #6 (Surface Finishing):
The final step is either a spray coated (powder coated) or clear coated finish to protect the surface of the wheel.
