Benefits:
- Stand out from the crowd with the perfect set of headlights for your Vehicle.
- Set your Vehicle apart from others on the road with these headturning Morimoto headlights.
- Get that unique look you want for your Vehicle with a quality feel that people won't know is aftermarket.
Features:
- Material: UV-Coated Polycarbonate (Lens), Powdercoated Aluminum (Housing)
- TRAFFIC PATTERN: LHD / DOT
- INPUT VOLTAGE: 9-36V DC
- INPUT CONNECTOR: H4 Male + T-Taps for DRL
- Power: 20w Low, 35w High
- Intensity: 2,400lm Low, 4,300lm High
- Light Source: 12x Nichia NCSW170C, 4x Philips Luxeon 3535L
- Color Rating: 5000K (Pure White)
- Lifespan: Approx. 10,000 hours
Includes:

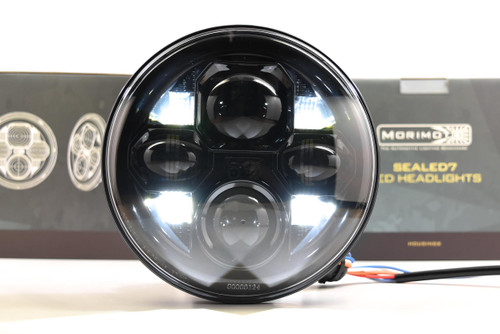

- Headlight: 1x Morimoto Sealed7 2.0 Bi-LED (Black)
- WIRE TAPS: 3x 14-16ga. T-Taps (for DRL/Turn Signal)
- WIRING: Delphi H13 Male Connector + DRL signal wires
- Warranty: 5 Years
Applications:
- 7in Round Standard FITMENTS
Application Notes:
Description:
Just when you think: You've done your research and come across every last option in the 7in Round LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a 7in Round platform; Morimoto's Sealed7 2.0 pulls it off in the most functional and attractive setup we've seen to date. Honestly: We are've seen em all and believe that the Sealed7 2.0 is the best new entry in the 7in Round market for a variety of reasons, which we'll outline below. Proprietary: The Morimoto Sealed7 2.0 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the real-deal J.W. Speaker, at the top of the totem poll. Then you have the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C, and then you have the Truck-Lite reflector-based 7" lights...again, re-branded by company X,Y, and Z. These are unlike anything else on the market. Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs a "dual-burn" setup on high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there. DRL / Switchback: The quad-optic setup has three functions: 1) High-intensity white daytime running light. 2) Low-intensity white daytime running light (with low beams on) and 3) High-intensity amber turn signal. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops. The 3-wire DRL/Signal input makes setup easy. Quality: No expense was spared when designing the Sealed7. Start with the ingredients at the heart of the headlight from Nichia-Japan and Philips-Lumileds. These aren't cheap emitters to begin with. The UV coated Polycarbonate lens is shatter proof and will take years of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink are no deeper than most traditional 7" PAR56 headlights. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use. 7" Standard: Designed to replace all 7in Round / PAR56 headlights, the Sealed7 offers full low and high beam functionality. They come standard with H13/9008 male inputs, tailored for use on a newer Jeep Wrangler - but can easily use an H4 adapter to go old school.
