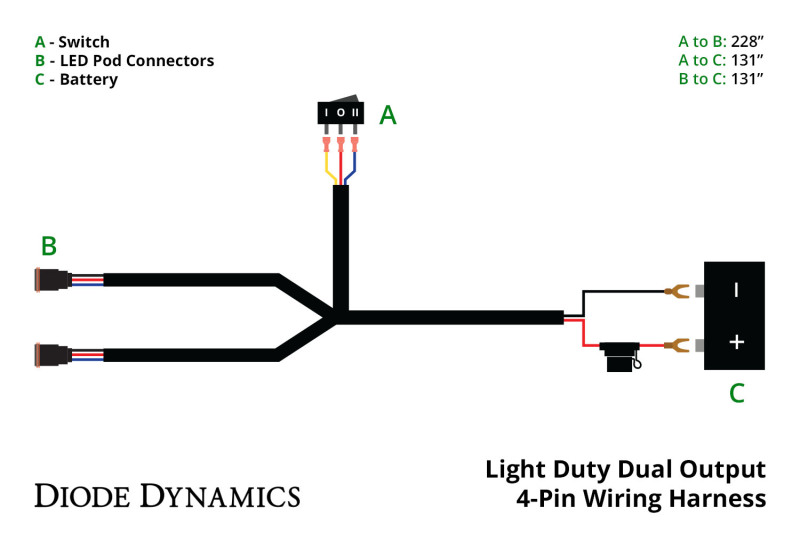

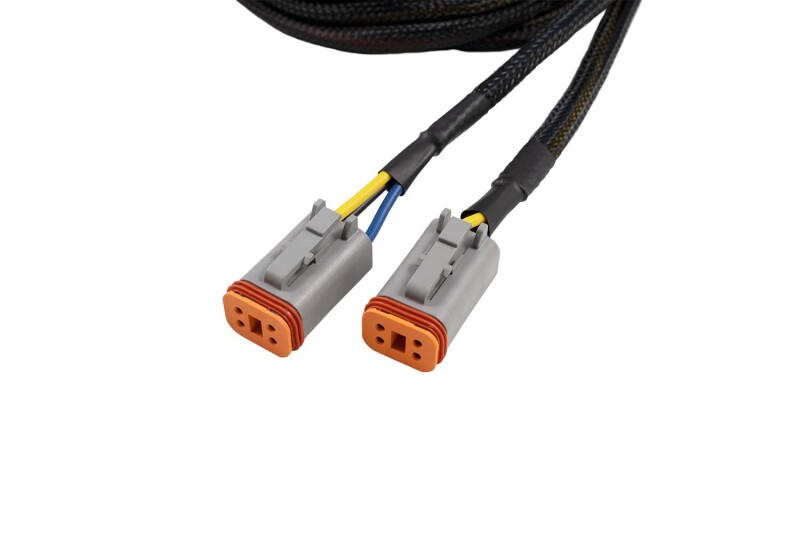

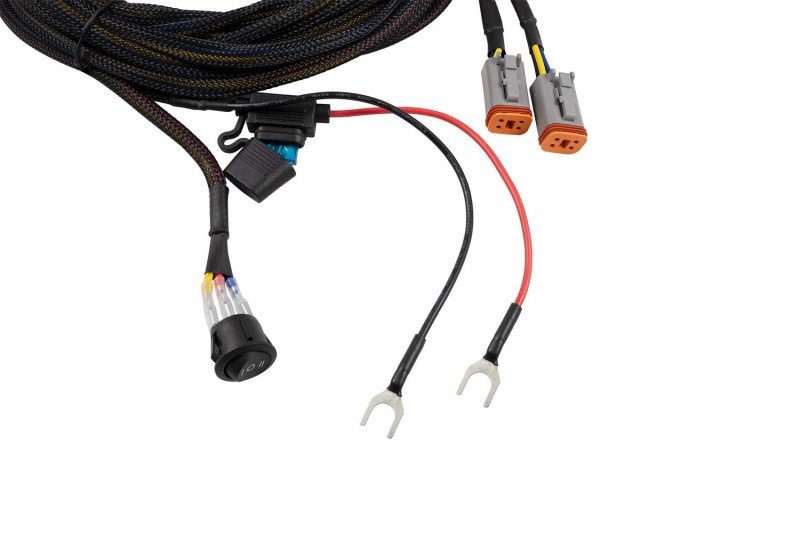

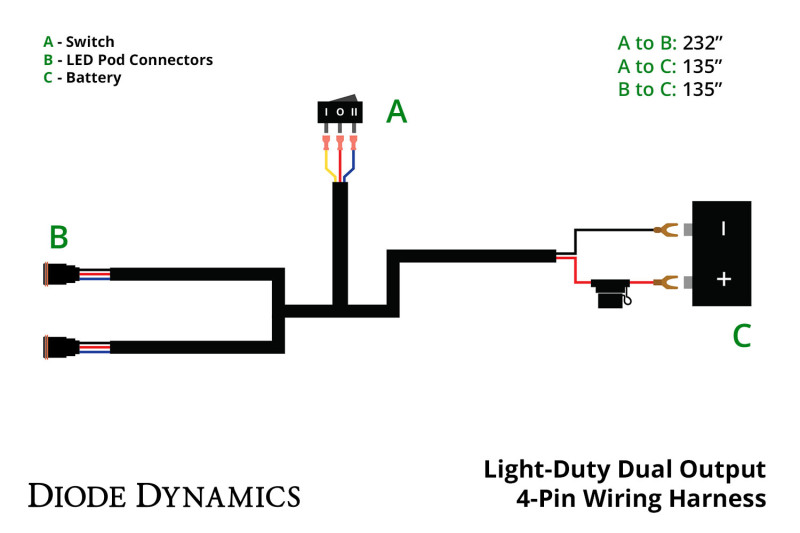

Overview Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight off and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation.This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below. C1 Sport: 1.2AC1 Pro: 1.7ASSC2 Sport: 0.6ASSC2 Pro: 1.75ASS3 Sport Main Beam: 1.1A Backlight: 0.03ASS3 Pro Main Beam: 2.7A Backlight: 0.03A SS3 Max Main Beam: 3A Backlight: 0.03A Experience. After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United States for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United State.

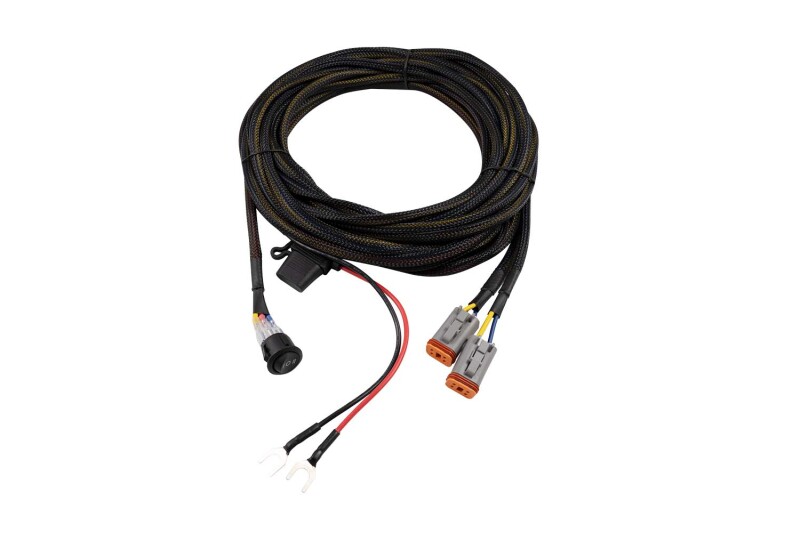

Included in the box: One (1) wiring harness. One (1) toggle switch.
