Benefits:
- Blow the doors off people in your N55 powered BMW.
Features:
- Turbo assembly is compatible with electric wastegate vehicles only.
- Fully cast turbo that is manufactured to Dinan specifications with an upgraded thrust system thereby avoiding lengthy turnaround times caused by a core exchange program.
- Includes o-rings and gaskets needed for complete installation on a RWD vehicle only. If installing on an xDrive vehicle Dinan P/N D313-0117 is required for additional installation hardware.
- 50 State Emissions legal; CARB EO # D-176-52.
- Factory matching new car warranty (4yr/50k) when run in Dinan specification.
- Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
- Peak power w/ Flash (Non-M2): 436BHP @ 6500 RPM and 472 LB-FTs @ 3000 RPM and a max gain of 135 BHP @ 4500 RPM and 172 LB-FTs @ 3000 RPM when coupled with other performance upgrades on 93 octane..
- Peak power w/ DPT (M2): 446 BHP @ 6500 RPM and 458 LB-FTs @ 4500 RPM with max gains of 101 BHP @ 6500 RPM and 86 LB-FTs @ 4500 RPM when coupled with other Dinan Performance upgrades on 93 octane.
- Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop (Applicable to RWD vehicles only).
Applications:
- 2014 - 2016 BMW F22/23 M235i (incl. xDrive)
- 2016 - 2018 BMW F87 M2 (N55)
- 2012 - 2015 BMW F30 335i (incl. xDrive)
- 2014 - 2016 BMW F34 335i GT (incl. xDrive)
- 2014 - 2016 BMW F32/F33 435i (incl. xDrive)
- 2015 - 2016 BMW F36 435i Gran Coupe (incl. xDrive)
- 2012 - 2016 BMW F10 535i (incl. xDrive)
- 2012 - 2018 BMW F12/F13 640i (incl. xDrive)
- 2013 - 2019 BMW F06 640i Gran Coupe (incl. xDrive)
- 2013 - 2015 BMW F01/F02 740i/740Li
- 2012 - 2017 BMW F25 X3 xDrive35i
- 2015 - 2016 BMW F26 X4 xDrive35i
- 2016 - 2018 BMW F26 X4 M40i
- 2014 - 2018 BMW F15 X5 (35i)
- 2015 - 2019 BMW F16 X6 (35i)
Application Notes:
- Install PDF - DINAN D310-0110A
- Kit only compatible with vehicles using an electronic wastegate. There is a separate kit (D310-0115) for cars equipped with a mechanical pneumatic wastegate (applies only to the 335i). Hardware supplied in the base turbo kit is only complete when installing on a RWD vehicle. If vehicle is an xDrive vehicle then additional hardware is required to complete installation. We offer Dinan PN D313-0117 for those cases.
- Installation procedure requires factory-level tools such as BMW ISTA (or equivalent) to adjust wastegate for proper operation.
Description:

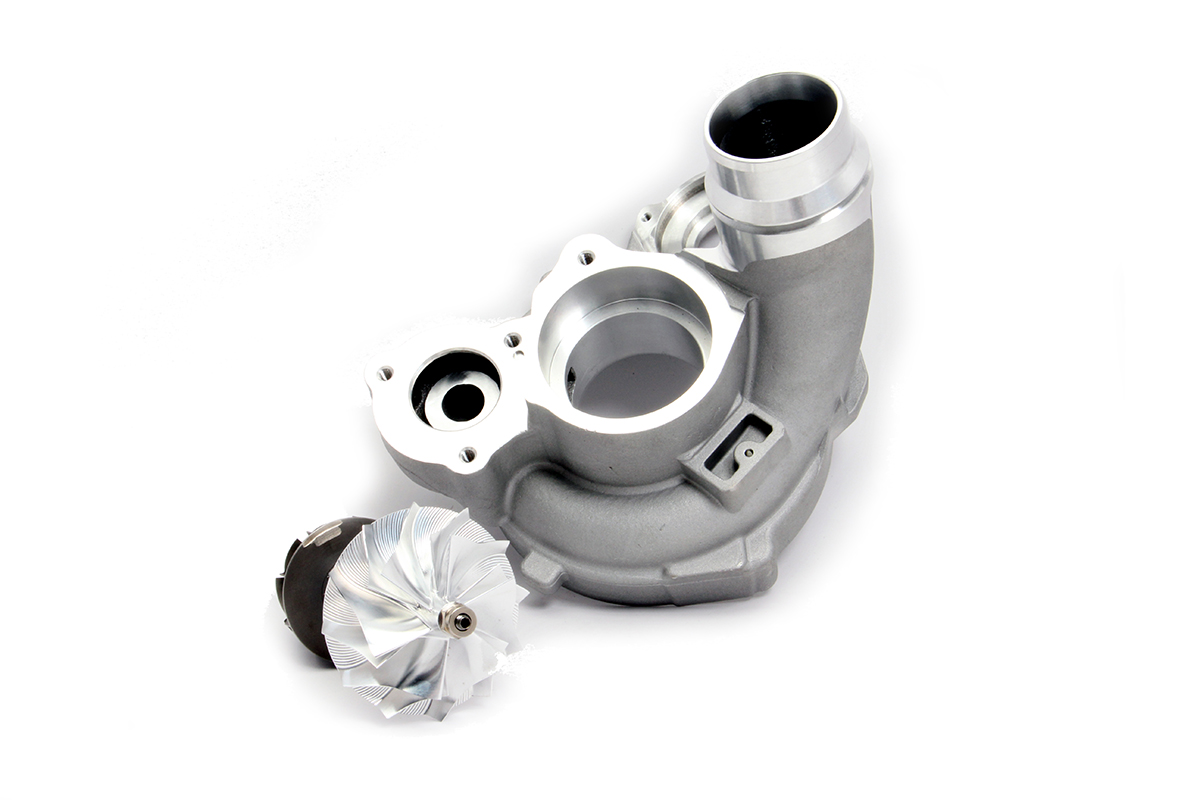

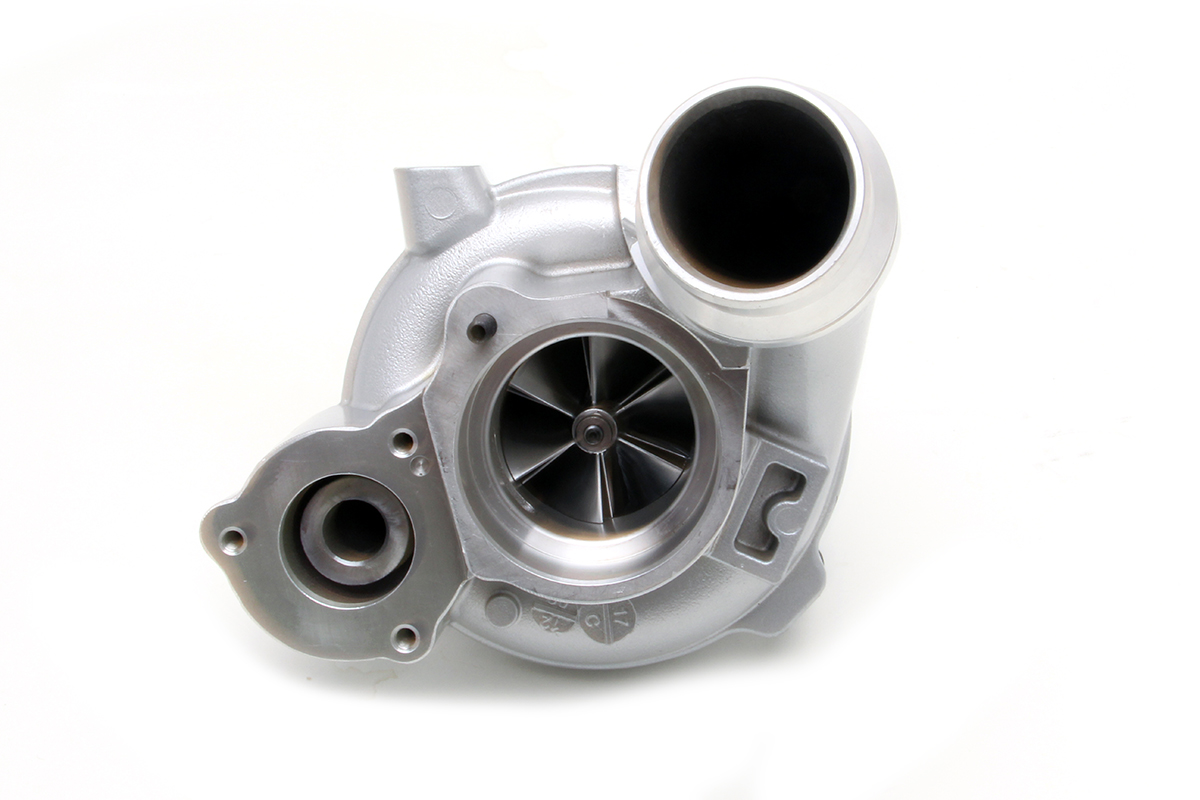

For the racing enthusiast or those just looking for the best, this is the ultimate upgrade to fully maximize the power output of your vehicle. The stock turbocharger is replaced with one that utilizes a larger compressor wheel that allows 30% greater flow, thus enabling additional boost pressures at higher engine speeds while retaining efficiency. These are fully cast turbos that are manufactured to Dinan specifications along with an upgraded thrust system over the stock turbo to ensure reliable and prolonged life. In order to attain maximum advertised power gains these big turbos will need to be paired with Dinantronics stage 4, as well as Dinan intercooler to fully regulate the boost increase and deliver a polished product although the exhaust and intake are also recommended.
