Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports high flow while providing good service life. Cleanable 40-micron Stainless Steel mesh construction. Flow capacity of up to 1,200 plus GPH (20.00 GPM) with less than 1-PSI pressure drop. Supports up to 11,000 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 8,000 Flywheel HP, Forced Induction on Ethanol. Supports up to 3,800 Flywheel HP, Forced Induction on Methanol. Ideal as a post-pump filter with gasoline, ethanol and Methanol burning engines, carb and EFI,?with medium to large Aeromotive electric fuel pumps from the A2000 to the Pro-Series fuel pumps. Popular as a post pump filter with 6 and 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.

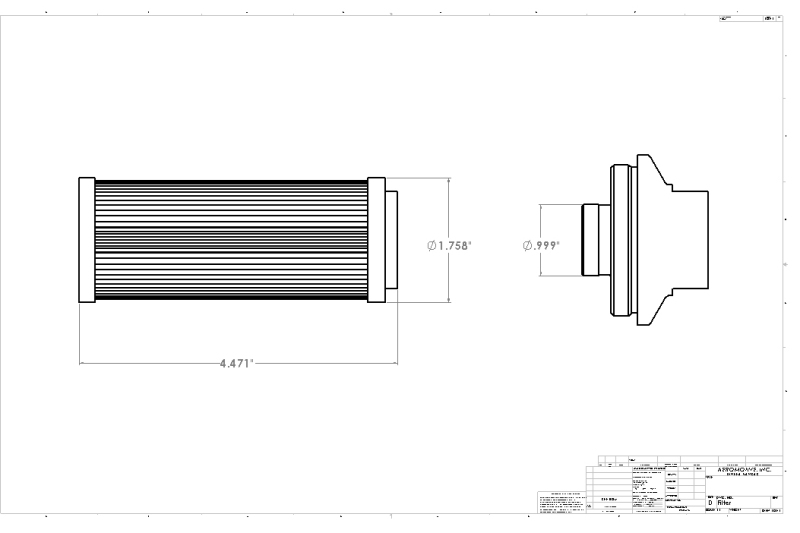

Replacement Element, 40-m Stainless Mesh, for 12342/12343, Fits All 2-1/2" OD Filter Housings.
40-micron stainless steel replacement element. used for P/N 12342, 12343.
