"Excellence in Performance", backed by the best one-year warranty in the industry!
HD/Race Sprung 4 Pad
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

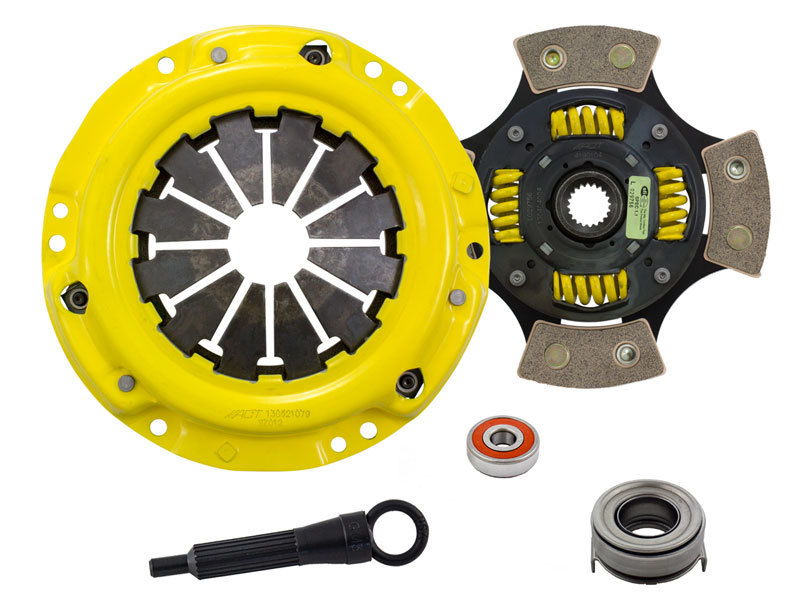

SZ3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Fitment:
1986 Suzuki Samurai JA
1986 Suzuki Samurai JX
1986 Suzuki Samurai JX SE
1987 Suzuki Samurai JA
1987 Suzuki Samurai JX
1987 Suzuki Samurai JX SE
1988 Suzuki Samurai JA
1988 Suzuki Samurai JX
1989 Suzuki Samurai Base
1990 Suzuki Samurai JL
1991 Suzuki Samurai JA
1991 Suzuki Samurai JL
1991 Suzuki Samurai JS
1992 Suzuki Samurai JA
1992 Suzuki Samurai JL
1993 Suzuki Samurai JA
1993 Suzuki Samurai JL
1994 Suzuki Samurai JL
1995 Suzuki Samurai JL
