Are you ready to get the most power out of your BMW N54/N55 Engine? aFe Power has come out with this Scorcher Module to do just that. This kit is a direct plug and play kit and gives you instant power and torque throughout the entire RPM range.
NOTE: Please check the sensor type you need for your BMW
If you are the BMW owner looking for power gains but not looking for problems related to tuning your N54/N55 engine then this aFe Scorcher Module is the perfect tune for you! aFe programmers and engineers spends thousands of hours to create this tuner so there would be no problems that other more radical tuners give you. This module is programmed from aFe to give you the perfect amount of extra boost that will not harm your N54/N55 engine, however will adapt and add more when other modifications are added just as downpipes, exhaust and/or intake.

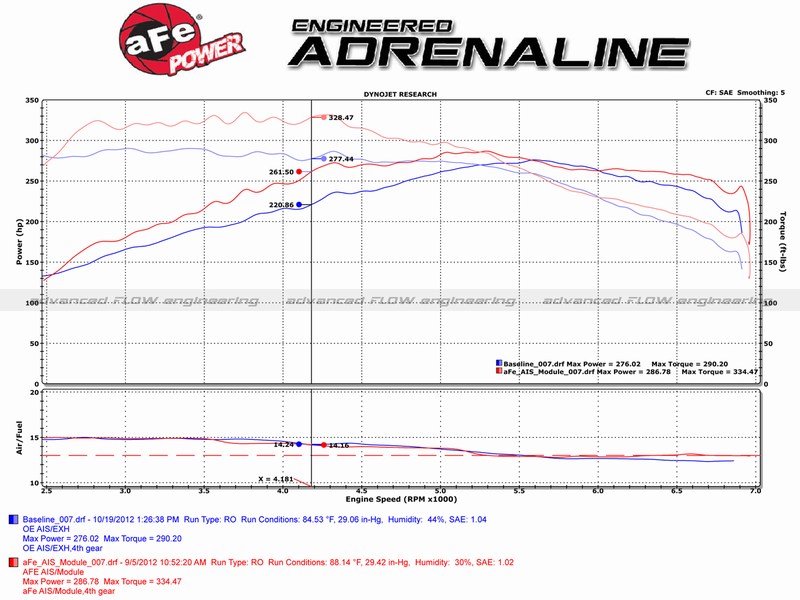

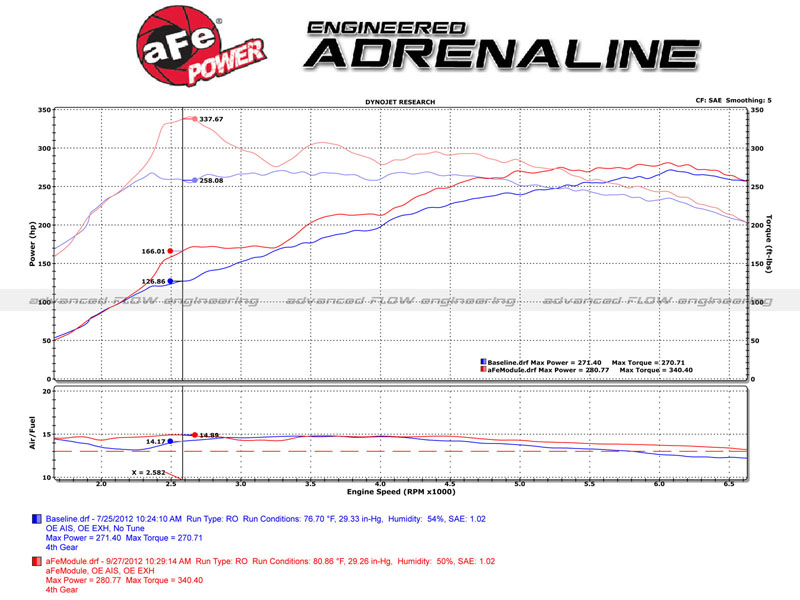

Put up to 40hp and 51lbs. x ft. torque to your N54/N55 today! The aFe Power SCORCHER Module is designed to alter the pressure sensor signals to increase turbo boost to an optimum level throughout the entire RPM range. The result is a harmonious balance between power, throttle response and drivability. This module provides a hassle-free installation with no cutting, drilling or splicing required during the 30 minute installation time. Factory electronic accessories are not affected by installing the Scorcher module.
Questions? Please give us a call at (714) 582-3330
| Benefits |
- Untraceable by the dealership
- NO Limp Mode or Check Engine Lights
- Power gains up to 40 whp and 51 wtq
- Instant throttle response
- Easy Plug and Play installation
- Safest tuner on the market
| Fitment |
- 2011-2013 BMW E9X 335i/is
- 2007-2010 BMW E9X 335i
- 2007-2010 BMW E8X 135i/1M
- 2008-2010 BMW E60 535i
- 2008-2012 BMW E70 X5
- 2008-2012 BMW E71 X6
- 2009-2012 BMW E89 Z4 35i
- 2012+ BMW F30 335i
Direct Plug In Power:
This simple and safe plug and play module adds instant power by altering pressure sensor signals to increase boost to an optimum level throughout the entire RPM range.
Blue L.E.D. Power light:
This module comes with a built-in blue L.E.D. light to show your module is powered up and functioning correctly.
High Precision and Reliability:
Scorcher modules are 100% tested, have output protection on all signals and are built to a 0.1% tolerance on components in critical areas. Signal filtering is used for a smooth response. These modules work great on vehicles in stock trim but are optimized to maximum performance with use of aFe Power performance parts (intakes, filters, exhaust, etc.).
High Quality Materials:
aFe Scorcher modules use OE style ""all weather"" connectors which require no modification to your factory harness, providing a secure factory-style fit and hassle-free installation. The housing is constructed of aluminum with a hard coat black anodized finish and uses Automotive grade TXL wire with high heat and chemical resistance. Scorcher Modules come with a 2-year limited warranty.
Questions? Please give us a call at (714) 582-3330
BMW N55 Sensor Style
Sensor 1 Style:

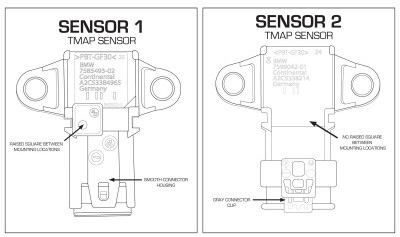

The BMW N55 came with two types of TMAP/MAP Sensors. This Module accommodates the Sensor 1 style. The Sensor 1 TMAP/MAP sensor is identified by having a smooth connector housing and a raised square located between the mounting bolt locations. See the illustration on this web page or on page 3 of the instruction manual for details. The TMAP sensor is located on the drivers side of the engine, mounted on the charge pipe between the factory air box and the strut tower. Note: This information is critical to choosing the correct module for your vehicle.
Sensor 2 Style:
The BMW N55 came with two types of TMAP/MAP Sensors. This Module accommodates the Sensor 2 style. The Sensor 2 TMAP/MAP sensor is identified by having a gray connector clip and no raised square located between the mounting bolt locations. See the illustration on this web page or on page 3 of the instruction manual for details. The TMAP sensor is located on the drivers side of the engine, mounted on the intake tube between the factory air box and the strut tower. Note: This information is critical to choosing the correct module for your vehicle.
| Sensor Style ||Year ||Make || Model ||Engine || Part Number |
|1 ||11-13 ||BMW ||E9X 335i ||N55 ||77-46301 |
| 1 ||11-13 ||BMW || E82/E88 135i ||N55 || 77-46301 |
|1 ||11-13 ||BMW ||F07/F10 535i ||N55 ||77-46301 |
| 1 ||11-13 ||BMW || E70 X5 35i ||N55 || 77-46301 |
|1 ||11-13 ||BMW ||E71 X6 35i ||N55 ||77-46301 |
| 2 ||11-13 ||BMW || E9X 335i ||N55 || 77-46304 |
|2 ||11-13 ||BMW ||E82/E88 135i ||N55 ||77-46304 |
| 2 ||11-13 ||BMW || F07/F10 535i ||N55 || 77-46304 |
|2 ||11-13 ||BMW ||E70 X5 35i ||N55 ||77-46304 |
| 2 ||11-13 ||BMW || E71 X6 35i ||N55 || 77-46304 |
|N/A ||07-10 ||BMW ||E9X 335i ||N54 ||77-46302 |
| N/A ||07-10 ||BMW || E82/E88 135i ||N54 || 77-46302 |
|N/A ||08-10 ||BMW ||E60 535i ||N54 ||77-46302 |
| N/A ||09-12 ||BMW || E89 Z4 35i ||N54 || 77-46302 |
|N/A ||10-12 ||BMW ||E92 335is ||N54 ||77-46302 |
| N/A ||11-12 ||BMW || E82 1M ||N54 || 77-46302 |
|N/A ||08-10 ||BMW ||E71 X6 ||N54 ||77-46302 |
BMW N54 - 77-46302
BMW N55 - 77-46301
BMW N55 - 77-46304
