BMS Power Box Performance Tuner N52 for 2004-12 BMW 128i 328i 528i [E82/E90/E92/E60] PBXN52

$0.00
(No reviews yet) Write a Review
SKU:
BMS_PowerBox_MW







Benefits

  • 100% Plug and play
  • Gains of 8-10 horsepower & 8-10 Ft./Lbs of torque at the rear wheels
  • 7 available maps
  • Easy switching of maps can be changed from the drivers seat
  • Improved throttle response
  • Compatible with both N51, N52, and N53 motors











Applications:

Non-Turbo N52

BMW 1 Series
•
E82 E87 E88 - 125 128 130
BMW 3 Series
•
E90 E91 E92 E93 - 323 / 325 / 328 / 330

BMW 5 Series
•
E60 E61 - 525 / 528 / 530

BMW 6 Series
•
E63 E64 - 630

BMW 7 Series
•
E65 E66 - 730


BMW X Series
•
E70 - 3.0si

BMW Z Series
•
E85/E86 2.5si / 3.0i • E89 sDrive 23i / 28i / 30i

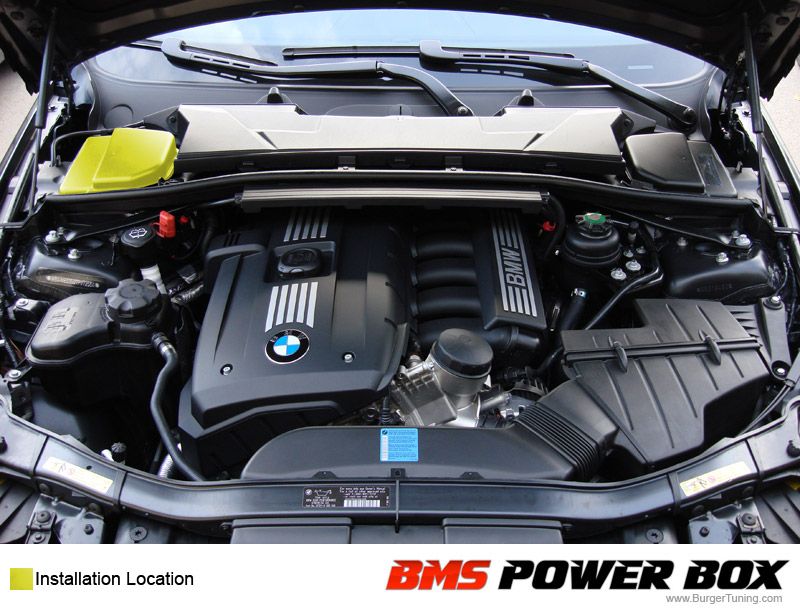

Installation Difficulty: Estimated Install Time:
     EASY 30 Mins

Installation Guide: Please Click Here







How about up to 60hp to the wheels (80hp crank) on a completely stock car on pump gas?

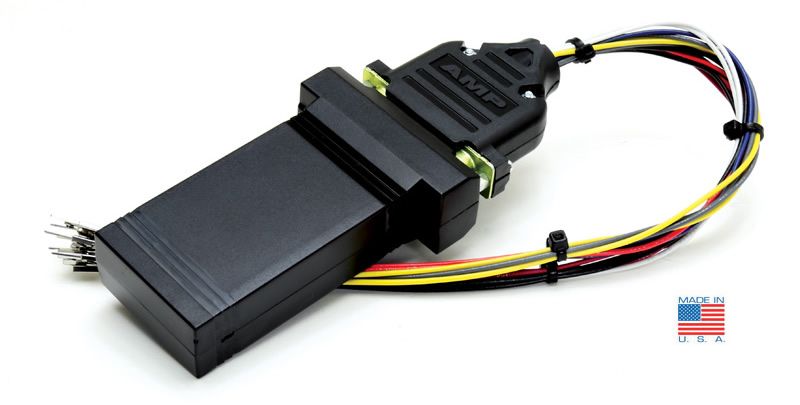

Finally, thanks to Burger Motorsports there is a tuner available for the N51/N52/N53 motor (128i, 328i etc. See below for a full list of applications). The BMS Power Box remaps the throttle mapping for better throttle response, and an increase in horsepower and torque. The Power Box features easy installation and removal, and gas pedal switching between 7 performance maps. The Power Box shows power gains from 8-10 horsepower and 8-10 Ft./Lbs. of torque at the rear wheels on a dyno. Upgrade your vehicle's power and drivability with the BMS Power Box.

The BMS Power Box is purely plug and play and installation only takes roughly 20 minutes, and only requires basic hand tools. It is completely reversible, and no cutting of any wires is needed. Installation is very discreet and allows most customers to leave the Power Box installed for routine service.







Map Guide

Map 0 - Disables BMS Power Box, all signals pass through
Map 1 - 30% throttle remapping, performance tuning on
Map 2 - 60% throttle remapping, performance tuning on
Map 3 - 100% throttle remapping, performance tuning on
Map 4 - 30% throttle remapping, performance tuning off
Map 5 - 60% throttle remapping, performance tuning off
Map 6 -100% throttle remapping, performance tuning off
Map 7 - throttle remapping disabled, performance tuning on



How to Switch Maps


Insert the keyfob and press the start button to turn the ignition on (lights on the dash but the engine is not running). Press and hold the gas pedal down to the floor for 4 seconds or more, then release. This puts the Power Box into listen mode. If you start the engine at this point you will be on map 0. For performance maps press the gas pedal to the floor and quicly release one time for each map you would like to select. For example, for map 3 press and release the gas 3 times, then start the engine. Your map setting will be saved until it is changed.

Dyno Sheets
Stock 328i vs Tuned (91 Octane)

THIS ITEM CAN NOT BE SHIPPED OR INSTALLED IN CALIFORNIA
THIS PRODUCT IS INTENDED FOR USE WITH CLOSED COURSE COMPETITION VEHICLES ONLY

THIS RACING PART IS ONLY TO BE USED WITH COMPETITION RACE VEHICLES OPERATED ON A CLOSED COURSE
CALIFORNIA CUSTOMERS PLEASE VIEW BURGER MOTORSPORTS'S EMISSION GUIDELINES

Mod Category:
Performance
