AMS Intercooler for 2007-12 BMW 135i/335i [E82/E90/E92/E93]

Description
Categories & Tags

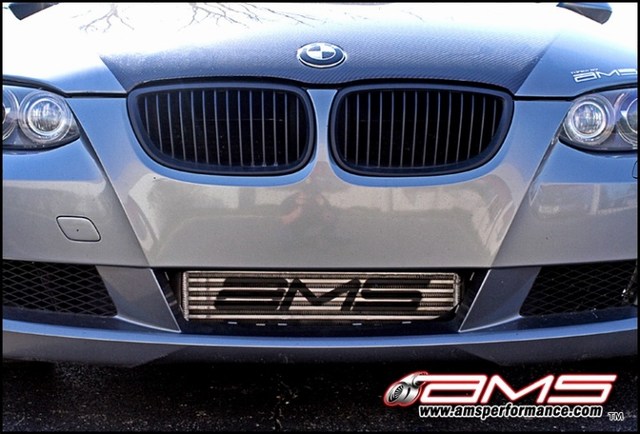

AMS BMW 135i/335i Front Mount Intercooler
AMS' new intercooler gives your 135i/335i the edge over the competition. Your car's stock intercooler is a fraction of this size. Even with a stock vehicle, any time you step on the gas you are robbing yourself of horsepower, because your stock intercooler does not have the ability to cool enough air. It is running hot air into the engine bay, giving your twin turbo engine sluggish throttle response, acceleration and an increase in turbo lag.

Hot Air vs. Cold Air
Warm or hot air has fewer molecules of oxygen per cubic centimeter then cool or cold air. Hot air leaves your engine out of breath and gasping for more oxygen. However in cold air the oxygen molecules are tightly packed together, giving an optimal mixture to create a powerful and complete combustion. This allows the engine to perform to its highest performance without ever losing power. It is proven on 1/4 mile times that an engine will perform and will make a better time when the weather is cold and dry compared to times when the weather is hot and humid.

What you can expect

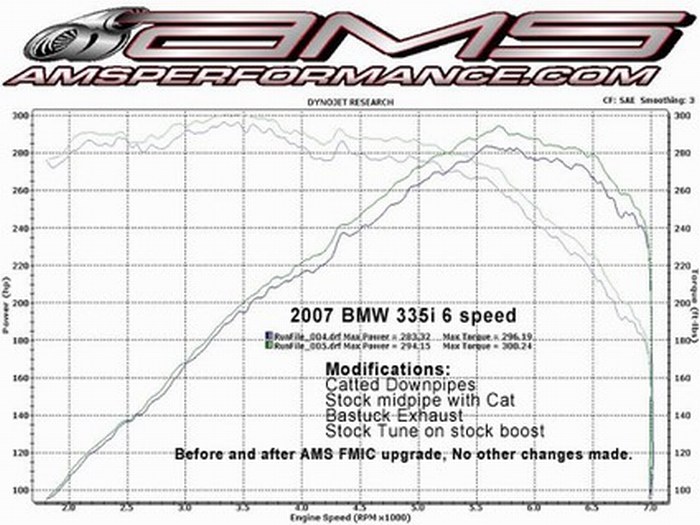

The AMS BMW 135/335 Front Mount Intercooler is the best performing direct bolt on you can buy. Simply by bolting on this intercooler on a stock car you can expect over 10 wheel horsepower gains. cars running increased boost due to a tune have seen 40 plus wheel horsepower near redline! This intercooler has over 49% more internal flow area than its stock counterpart, works with the stock piping and only requires small trimming to the plastic bumper support.

Construction
This AMS Intercooler features cast aluminum end tanks for added durability with smoother features and geometry. Designed by AMS' engineering team using Solid works (3D CAD software) these A356 T6 Alloy Aluminum end tanks have improved flow over sheet metal end tanks and include gusseted brackets to prevent cracking or failure. AMS end tanks dont end there. They also incorporate an industry first 3 inlet and exit port. AMS goes beyond the competition to ensure quality. Each AMS Intercooler is hand TIG welded in a jig for a perfect fit and pressure tested to 50 psi to ensure maximum performance.

The Result
AMS tested many intercooler cores to find the best performing units available. Over the past 8 years AMS has tested just about every core available to source the best manufacturer for their kits. BMW is no exception as this intercooler is manufactured by the same company that has 1400hp drag cars and time attack race team.

Installing this state of the art AMS intercooler will ensure that you are constantly flowing cold crisp air into your engine bay; feeding your twin turbo charged engine oxygen enriched air that will give you that edge, of constant horsepower over the competition. No matter if your driving through the desert or at the track this AMS intercooler will surpass all your cooling and performance needs.

Exclusive Features

Over 49% more internal flow area than stock
Smooth flowing cast end tanks allow for better airflow over the competitions sheet metal tanks
Best performing intercooler on the market and requires less bumper support trimming than the competition.

Industry first 3 inlet and outlet end tank ports

Custom molded silicone couplers to optimize airflow volume and velocity.
Will bolt up to your stock piping or most aftermarket pipe kits that are designed for the stock intercooler.
Bar and plate style core, the best performing on the market
All AMS intercoolers are pressure tested after assembly to 50 psi

Installation Guide Click Here

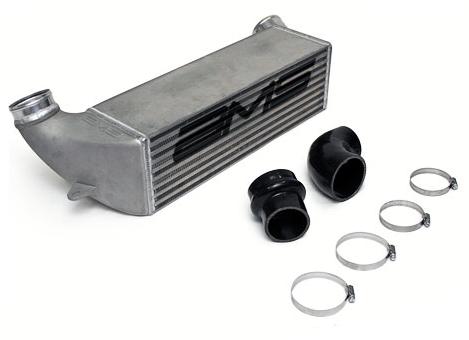

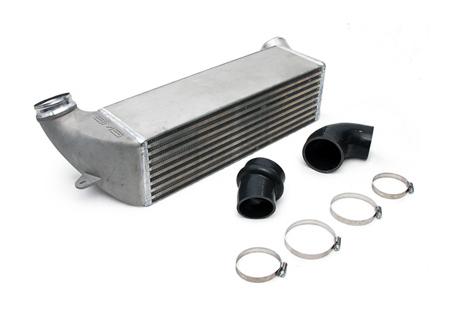

Kit Includes

Intercooler
Silicone couplers designed to be used with stock and most aftermarket piping.
Hose clamps

Specifications

Intercooler core dimension: 6"" tall, 20"" wide and 6"" thick
Good for up to 550whp
Comes with the Black ""AMS"" Painted Logo (optional)
Slight trimming of plastic bumper support required
Weighs 17.6 lbs.

Options

With or without Black AMS logo stencil (please specify)

Applications

BMW 335i, 335xi, 135i Both Automatic and 6mt. 2007-2010
Fits all USDM, and European Models

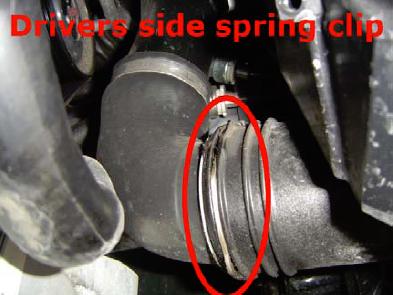

ATTENTION: Before ordering the AMS Intercooler make sure your 335i has this 90 degree rubber coupling. Some 2009 and 2010 335i models do not have this and so the AMS Intercooler will NOT fit. AMS is planning on designind a new connecting tube that will work with these select 2009 and 2010 335i models that do not have this coupling. If you have any question please feel free to call or email us.
